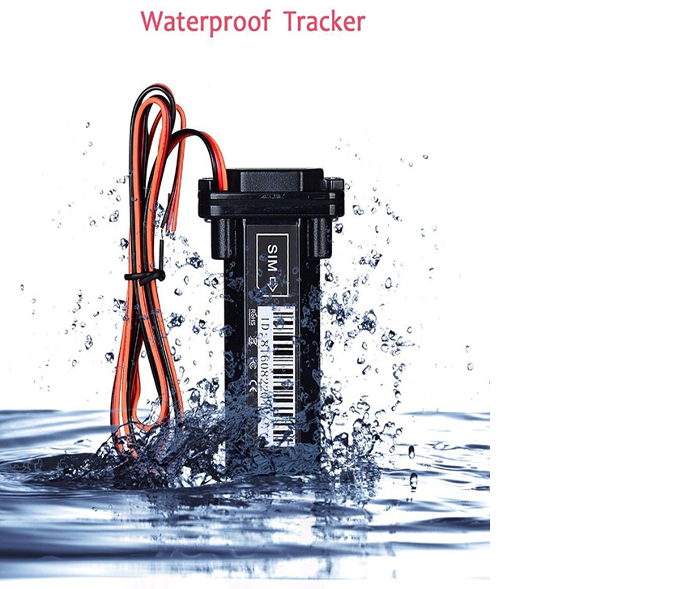

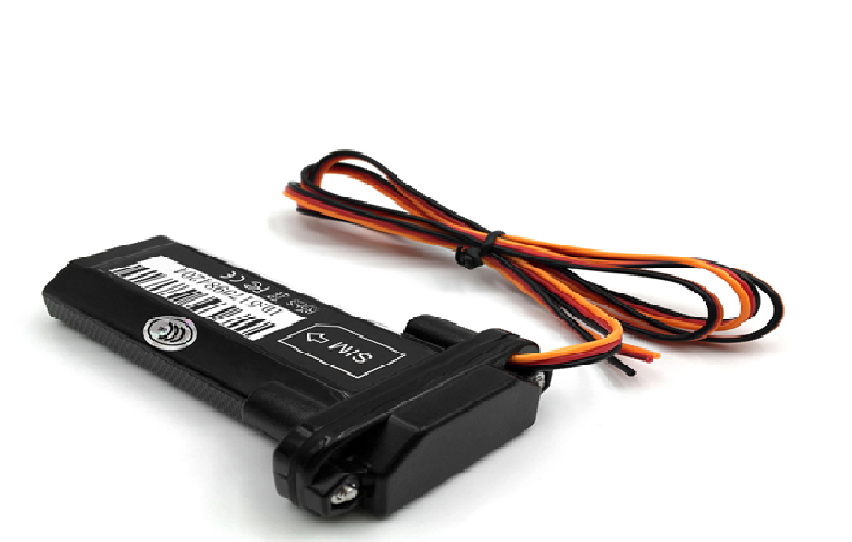

Waterproof Vehicles GPS T-TNL-GT02   Tracker With ACC Ignition Signal Detection

Product Description

Functions:

1. GPS/LBS real time location
2. ACC ignition signal detection
   3. Geo-fence
   4. Historical track playback
   5. SOS alarm
   6. Over speed alarm
   7. Vibration alarm
   8. Power failure alarm
   9 Movement alarm
   10. Sleeping mode
   11. Built in memory
   12. Built in backup battery
   13. ACC status check
   14. Support TCP & SMS
   15 Against high temperature
   16. waterproof
   17. Wide voltage

Specification:

• Built in battery:180 mAh(3.7V)
  Operating temperature: -20 to 55 Centigrade
  Operating Humidity: 5% to 95% Non-condensing
  GSM Chip: Quad Band GSM 850/900/1800/1900MHZ
  GPS Chip:7020
  GPS sensitivity:--162Db
  GPS frequency:L1,1575.42 MHz
  C/ A code:1.023 MHz chip rate
  Channel 56 channel all-in-view tracking
  Location Accuracy:10 meters, 2D RMS
  Speed Accuracy:0.1m/s
  Time Accuracy:1 microsecond time synchronization of satellite time
  Updated Time:average 0.1 sec
  Hot Start:Average 1 sec.
  Warm Start:average 30 sec.
  Cold Start:Average 32 sec.
  Maximum Height:18,000 meters (60,000 feet) max.
  Maximum Speed:515 meters/second (1000 knots) max.
  Maximum Acceleration:Less than 4g
  Instantaneous displacement:20 m/se
  Weight: 150g
  Input Vector: 9V-60V
  Waterproof: IP67

Quick Details

• Type: Vehicles GPS Tracker
• GSM Bands: GSM 850/900/1800/1900MHZ
• Feature: Waterproof Vehicles GPS Tracker With ACC Ignition Signal Detection

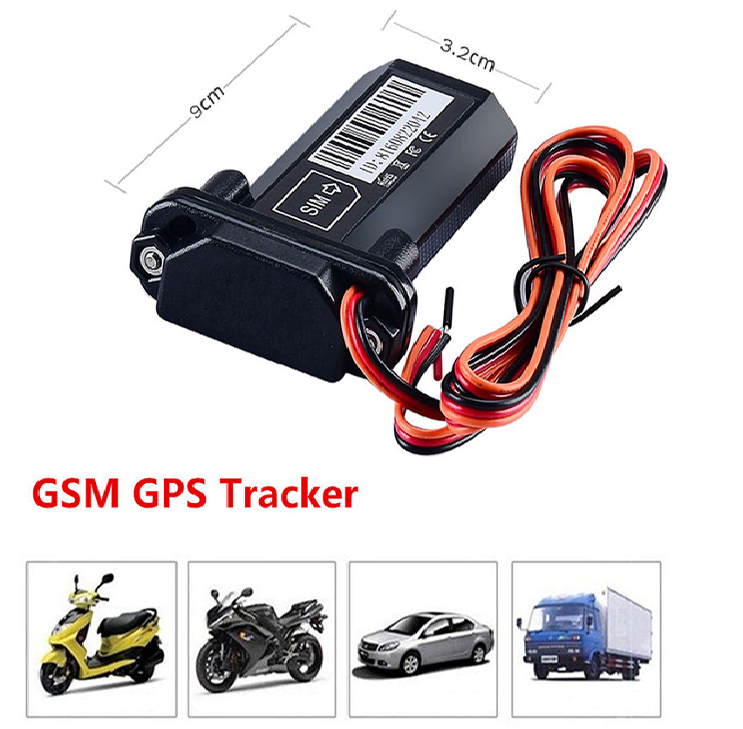

• Size: 90*52*20mm
• GPS Chip: 7020
• GPS sensitivity: --162Db
• GPS frequency: L1,1575.42 MHz
• C/ A code: 1.023 MHz chip rate
• Weight: 150g
• Working Voltage: 8-100V
