9V-100V Small GPS Tracker TNL-23 For Electric Motorcycle, Cars, Trucks

 Packaging & Delivery

Product Description

Product Specifications:

1).GSM band:850/900/1800/1900MHz;
2).GPRS:Class12,TCP/IP;
3).Working voltage:9-100V DC;
4).Working current:≈22mA (12vDC);
5).Working current:≈12mA (24vDC);
6).GPS Positioning time:
Cold start≈38s(Open sky); Warm start≈32s; Hot start≈2s(Open sky) ;
7).GPS accuracy:10m(2D RM);
8).Working temperature:-20℃~+55℃;
9).Working humidity:20%~80%RH;
10).Size:76(L)×26(W)×13(H)mm.

Product Features:

1. GSM850/900/1800/1900MHZ Quad-band;
2. Input operating voltage:8-100VDC;
3. GPS/LBS Real-time location,PC Website platform, mobile APP and Wechat for tracking.
4. Support SMS command for location info; Remote control circuit.
5. ACC ignition detection,Vehicle status indication.
6. The specific number can be set up for SOS and burglar alarm;
7. Built in backup battery,will alram when Illegal shear cables;
8. Support Historical track and route inquiry for 180 days;

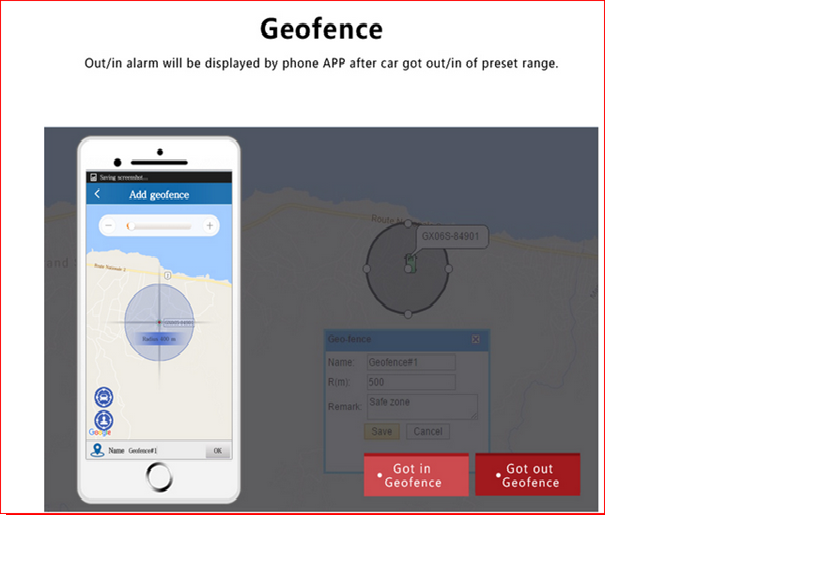

9. Geo-fence;
10. Over speed alarm support on the platform;
11. Support the WEB arming and disarming
